Draught seal carrier track
Draught seal carrier track
SKU:SEL-DSCT-WHITE-1
Couldn't load pickup availability
Please select quantity as linear meters you would like.

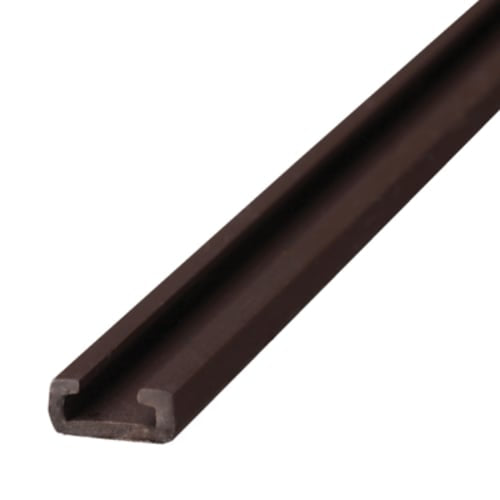

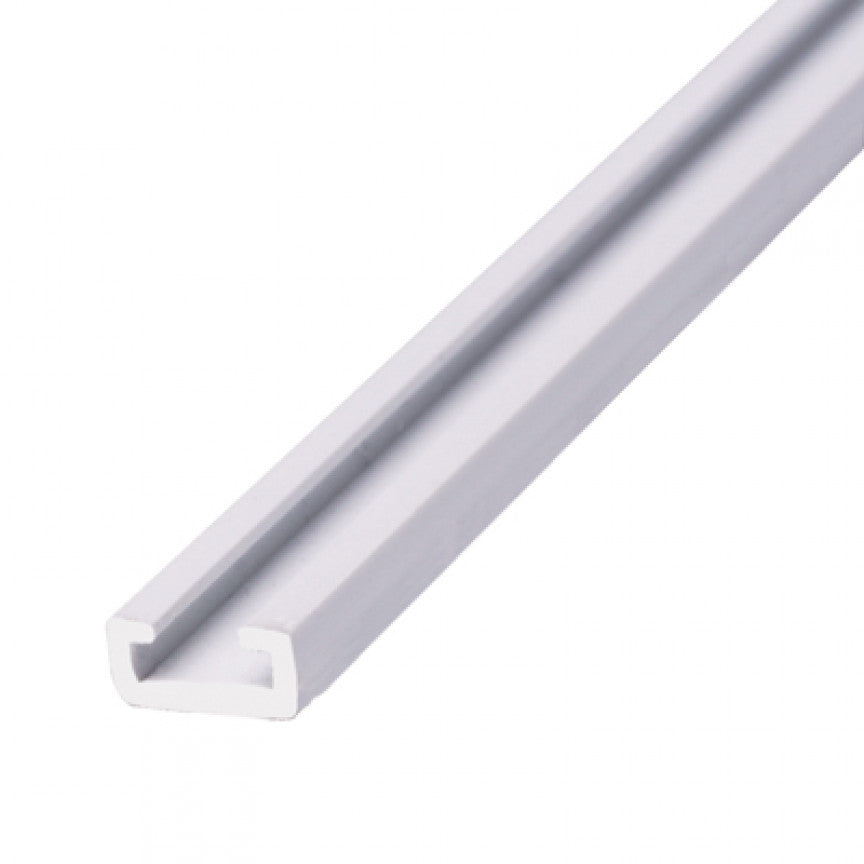

A track with a super strong pressure sensitive adhesive back to carry our twin central fin silicone coated polypropylene brush draught seals.
Which brush goes with this track
Every brush we sell has the same 4.8mm foot, and it fits this track. Pick the pile height from the gap you are sealing. The rule: the brush should stand 1 to 2mm taller than the gap so the fins stay in contact.
| Gap to seal | Brush pile | Fin type | Typical spot |
|---|---|---|---|
| 3 to 4mm | 5.5mm brush | Single fin | Tight sash channels, meeting rails |
| 5 to 7mm | 8.5mm brush | Twin fin | Most sash channels and door edges |
| 8 to 10mm | 11.5mm brush | Twin fin | Worn channels, rattly older windows |
If the gap varies along the run, size for the widest point. Track and brushes both come in white and brown, so match the track to the paint and the brush follows.
Fitting
Use a 8mm wide router to create a 3.5 mm deep channel and then insert the track after thoroughly cleaning the channel out. Note that the channel must be free of dust and any moisture before inserting the track.
Cut the track using these shears
Available in white and brown.
See the beads and seals replacement guide for where the track and brush sit in a full reseal.
